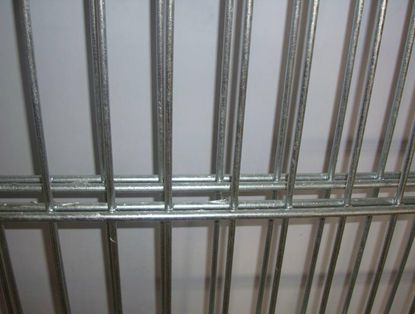

Twin wire panel fence often called 868 or 656 mesh (this being the size of the horizontal and vertical wires). It has two horizontal wires and one vertical wire forming a 200x50mm mesh. Heights vary from 1m to 6m high.
The twin wire panel fence is manufactured by pre galvanised wire and then powder coated,color could be green 6005 or black 9005
the mesh size normally are 50x200mm and 55x200mm.
pole size: 50 x 50mm or 60 x 60mm
|Wire dia||8/6/8 6/5/6|
|Mesh opening||50x200mm, 55x200mm|
|Width||2.2m, 2.50m, 2.75m, 3.0m|
|Height||1.8, 2.0, 2.2, 2.4, 2.7m|
|Package||Panels: in Steel pallets then cardboard covered. |
Posts: wrapped by woven bag,then put on pallet
Application of twin wire welded mesh:
●Public swimming pools and Parks

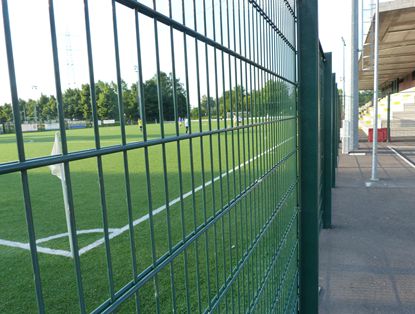

●Football pitches and stadiums
