Welded Mesh Fence

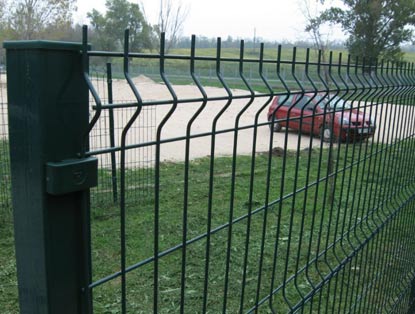

Welded Mesh Panels are manufactured using 4mm, 5mm diameter which is welded at each intersection. Horizontal profiled beams are added to the panel to give additional strength and to remove flexing in the panel.



The mesh aperture consists of 50 x 200mm, 55*200mm.

Inquire Now

Product Description

Fence panel wire dia: 4.5mm, 5.0mm (4.0-6.0mm)

Fence panel hole size: 50*200mm, 55*200mm, 50*100mm

Height:      0.63m, 1.03m, 1.23m, 1.53m, 1.73m, 2.03m, or as your required.

Length:      2.0m, 2.5m, 2.9m


Production Process of 3d panel fencing:

1, pre-galvanized steel wire-welded-powder coated(RAL6005,RAL9005 or as request)

2,steel wire-welded-hot dip galvanized






 FENCING PANEL SPECIFICATIONS

MESH SIZE

WIRE THICKNESS

COATING

HIGHT

LENGTH

FOLDS

WEIGHT

50mmx200mm

4.0mm/5.0mm

(before PVC coated is 4.0mm and after PVC coated is 5.0mm)

Galvanized and PVC coated

0.63m

2.00m

2

3.76kg

0.83m

2.00m

2

4.85kg

1.03m

2.00m

2

5.95kg

1.23m

2.00m

2

7.05kg

1.43m

2.00m

2

8.15kg

1.63m

2.50m

3

11.67kg

1.83m

2.50m

3

13.04kg

2.03m

2.50m

4

14.51kg

2.23m

2.50m

4

15.88kg

2.43m

2.50m

4

17.18kg

Note:

1, The opening can be 50mmx100mm,50mmx150mm or other size.
2, The wire thickness can be on the customer's request
3, For the finish coating, we can do electric dipped galvanized and PVC coated, hot dipped galvanized and PVC coated, PVC coated without galvanizing. The customer can also choose PVC painted finish treating.
4, The color of the PVC powder is available in all RAL colors
5, Regarding the height and length of the panel, customer's special demand can be also considerable



SPECIFICATIONS FOR THE POST


0.93m

1.13m

1.33m

1.53m

1.73m

2.13m

2.33m

2.53m

2.73m

2.93m

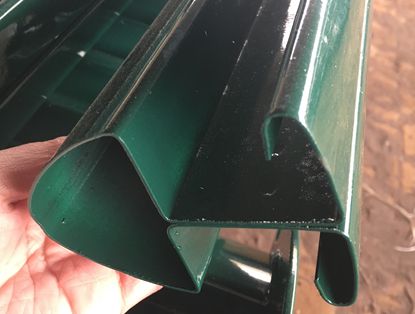

Peach Post

50mm x 70mm











70mm x 100mm











Square Post

50mm x 50mm

2.92kg

3.56kg

4.20kg

4.84kg

5.48kg

-------

-------

--------

-------

-------

60mm x 60mm

3.48kg

4.22kg

4.98kg

5.76kg

6.57kg

8.11kg

8.93kg

9.64kg

10.42kg

11.17kg

Round Post

φ48mm

2.31kg

2.81kg

3.31kg

3.80kg

4.30kg

5.29kg

-------

-------

-------

-------

φ60mm

3.30kg

4.01kg

4.72kg

5.43kg

6.14kg

7.56kg

8.27kg

8.98kg

9.69kg

10.40lg

Note:

1, The height of the posts are completely according to the height of the fencing panel above.
2, The thickness for TYPEⅠis 1.2mm; thickness for TYPEⅡ is 2.0mm; Thickness for TYPE Ⅲφ48mm is 2.2mm, φ60mm is 2.5mm. Customer's special demand is also considerable.
3, For the finish coating, we can do electric dipped galvanized and PVC painted, hot dipped galvanized and PVC painted, PVC painted without galvanizing.
4, The color of the PVC powder is available in all RAL colors.
5, Regarding the height of the post, if the height of post is less than 2 m, there will be 0.3 m under the ground
If the height of the post is more than 2 m, there will be 0.5m under the ground.  We recommend the installation ways to be cement concrete.
