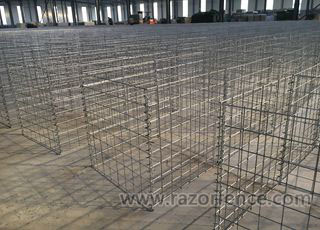

The Hesco bastion are welded by zinc-aluminum coated steel wire or hot dipped galvanized steel wire and joined with helical coil joints


The units  are lined with heavy duty non-woven geotextile that can then be filled with sand, stone, dirt, etc. to quickly set up a barrier that can keep soldiers safe.

Inquire Now

Product Description

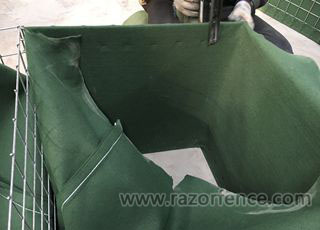

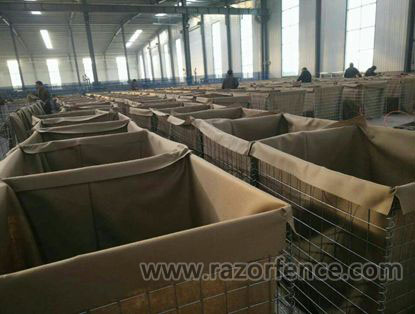

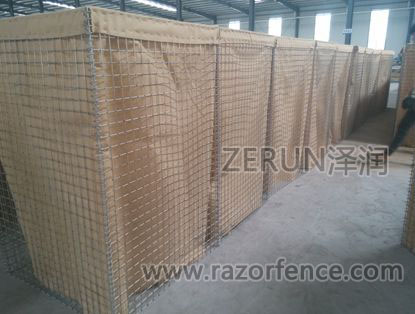

hesco bastion  is a multi-cellular  barrier system manufactured from welded zinc-aluminum coated steel wire and joined with vertical, helical-coil joints.The units are lined with a heavy-duty non-woven polypropylene geotextile.

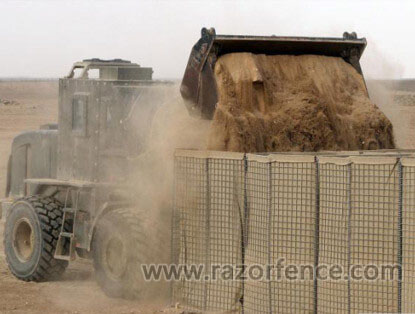

Can be filled with sand, earth, cement, stone then as a defence wall or bunker widely used in the military to protect safety.


Details of hesco bastion wall:

Wire thickness:4mm-5mm
Spring wire dia:3mm 4mm
Mesh size:50*50mm,  76.2mmX76.2mm, 80X80mm,
Geotextile:heavy duty non-woven polypropylene,color could be green,beige-sand,white etc
Panel size:2.21m x2.13m, 1.37m x1.06m, 0.61m x0.61m, also can be customized.
Process:

1, using hot dipped galvanized wire,aluminum zinc coated wire(galfan wire) to    weld

2, First welding,then hot dipped galvanized

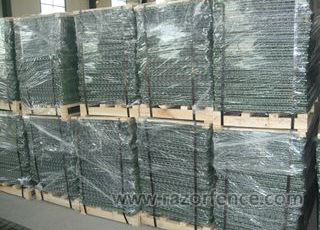

Package:

Several sets in one pallet(steel pallet or wooden pallet,it is depends on the sizes),then wrap with shrink film

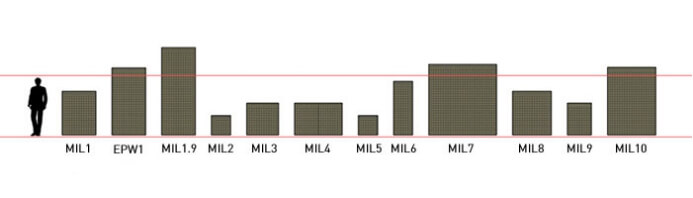

Type of hesco units:


HescoBarriers
PRODUCTHEIGHTWIDTHLENGTH
ZR-MIL224''(0.61M)24''(0.61M)4'(1.22M)
ZR-MIL339''(1.00M)39''(1.00M)32'.9''(10M)
ZR-MIL439''(1.00M)60''(1.52M)32'.9''(10M)
ZR-MIL524''(0.61M)24''(0.61M)10'(3.05M)
ZR-MIL666''(1.68M)24''(0.61M)10'(3.05M)
ZR-MIL787''(2.21M)84''(2.13M)91'(27.74M)
ZR-MIL854''(1.37M)48''(1.22M)32'.9''(10M)
ZR-MIL939''(1.00M)30''(0.76M)30''(9.14M)
ZR-MIL1087''(2.21M)60''(1.52M)100'(32.50M)
ZR-MIL1148''(1.22M)12''(0.30M)4'(1.22M)
ZR-MIL1284''(2.13M)42''(1.06M)108'(33M)



Our Advantage:

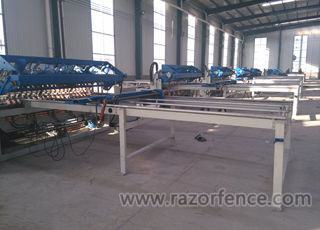

  • Automatic panel welding equipments 10 sets.

  • Firm welding panel,welding conncecting point ≥ 1/3

  • High quality Heavy duty non-woven polypropylene geotextile









Company: ZeRun Co.,ltd is one professional producer with 10 year experience,products passed ISO9001:2008 certification,Annual exporting quantity could be reach 5000tons.
